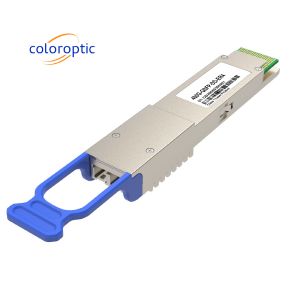

China ER4 Lite 400G QSFP DD Module SMF Transceiver With FEC For Enterprise Networking wholesale
  • China ER4 Lite 400G QSFP DD Module SMF Transceiver With FEC For Enterprise Networking wholesale
  • China ER4 Lite 400G QSFP DD Module SMF Transceiver With FEC For Enterprise Networking wholesale

ER4 Lite 400G QSFP DD Module SMF Transceiver With FEC For Enterprise Networking
Ask Latest Price
Video Channel
Brand Name :coloroptic
Model Number :C-QD4H13EC
Certification :UL, TUV, CE, RoHS, REACH, CMRT
Place of Origin :China
MOQ :2
Price :Negotiable
Payment Terms :TT, LC, Western Union
Supply Ability :1000 pieces/month
Delivery Time :7~15 days
Packaging Details :Plates with Carton
Data rate :400G
Wavelength :1310
Connector :Duplex LC
Form Factor :QSFP-DD
Temperature :0~70°C
DDM :Yes
Warranty :3 years
Label :Can Be Customized
Protocols :MSA
Application :Data Center Interconnect
more
Contact Now

Add to Cart
Find Similar Videos
View Product Description

400G QSFP-DD ER4 Lite 30km With FEC SMF Optical Transceiver For Enterprise Networking

The 400GBASE-ER4 lite module supports link lengths of up to 30km over a standard pair of G.652 single mode fiber (SMF) with duplex LC connectors. It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard. The 400 Gigabit Ethernet signal is carried over four CWDM grid optical wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device.
Key Features
  • QSFP-DD MSA compliant
  • 4 LWDM lanes MUX/DEMUX design
  • Up to 30km transmission on single mode fiber (SMF) with FEC
  • Operating case temperature: 0 to 70℃
  • 8x53.125Gb/s electrical interface (400GAUI-8)
  • Data Rate 106.25Gbps (PAM4) per channel.
  • Maximum power consumption 14W
  • Duplex LC connector
  • RoHS compliant
Application
  • Data Center Interconnect
  • 400G Ethernet
  • Infiniband interconnects
  • Enterprise networking
Product Details

Parameter Symbol Min Typical Max Units No
Operating Case Temperature TOP 0 　 70 degC 　
Link Distance D 0.002 　 30 km 　
Power Consumption 　 　 　 14 W 　
Center Wavelength L0 1294.53 　 1296.59 nm 　
L1 1299.02 　 1301.09 nm 　
L2 1303.54 　 1305.63 nm 　
L3 1308.09 　 1310.19 nm 　
Average Launch Power,each Lane PAVG 　 　 　 dBm TBD
OMA, each Lane POMA 　 　 　 dBm TBD
Damage Receiver power 　 　 　 　 dBm TBD
Receiver Sensitivity(OMA) SEN 　 　 　 dBm TBD
