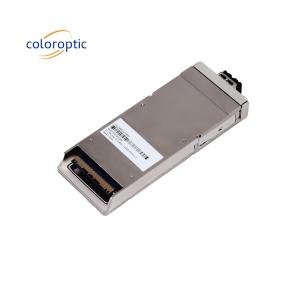

CFP2 400G DCO Coherent Optical Module 400Gbps With DWDM Transmission

CFP2 400G DCO Coherent Optical Module with DWDM Transmission 0C- 70C

The Coherent Optical Module is a DWDM pluggable solution that is designed to provide superior optical performance for high-speed data transmission. It is specifically designed for OSNR optimized applications such as DWDM transmission up to 100Gbps over 10km. It uses a COHERENT QSFP-DD form factor connector for improved reliability and portability. This module provides excellent stability and high-speed data transmission with guaranteed 3-year warranty.

Features:

his is a standard DWDM pluggable that adds on a myriad of values, each of which are listed below.

The line rate and modulation scheme associated with the same are both software settable on the pluggable. One could choose between 100G QPSK, 200G 8-QAM, 200G 16-QAM on the same pluggable module by software actuation. This allows one to adopt different reach as required.

• QPSK schemes could offer up to 2000km of reach on standard G.652 Single mode fiber.
• 16-QAM schemes could offer up to 400km of reach on standard G.652 Single mode fiber.
• The module does support different FEC algorithms to best match customer needs. This includes a 100G Staircase-FEC mode (SC-FEC) that enables interoperability with other, non CFP2-DCO based IPoDWDM products.
• The compact pluggable formfactor itself allows you to leverage a pay-as-you-grow-model. Also noteworthy is the fact that, contrary to a analog CFP2 where one has to depend on the line card to accommodate the DSP, the digital CFP2 carries the same onboard and allows complete independence in the pay-as-you-grow model.
• W also offers a pay-as-you-grow solution on the pluggable itself by licensing its capabilities. The base pluggable comes with an automatic 100G offering alone. Then you can procure a separate license for 200G at a later point in time as required. This brings down the cost of the pluggable day one and allows customer to purchase additional features only when required.
• When operated in 200G mode the pluggable consumes around 19W of power. This is state of the art in terms of power consumption specifications. Consequently, this offers considerable savings in OPEX.

Technical Parameters:

Applications:

Color Optic's CO-C24HDCZ Coherent Optical Module is an advanced product that has been designed to meet the most demanding requirements. It features a WDM-digital design, which allows for greater flexibility in applications and higher signal stability over longer distances. It offers up to 10km transmission distance and can be used in a wide range of environments, from 0℃ to +70℃. This module also provides a 3-year warranty and a 0 to +5dBm optical power range. It has a high OSNR performance and can be stored in a wide temperature range of -40℃ to +85℃. The CO-C24HDCZ is the perfect solution for telecom networks, data centers, and network infrastructure applications that need reliable, stable, and high-performance optical transmission.

Packing and Shipping:

Packaging and Shipping for Coherent Optical Module:

The Coherent Optical Module is packaged in a sturdy cardboard box with protective foam inserts. The box is sealed with adhesive tape to ensure the product is secure during transportation. The box is labeled with the product name, model, and serial number. The package is also labeled with the customer's address and the shipping company's tracking number.

The package is then shipped to the customer via a reputable shipping company. The shipping company will provide tracking information and insure the package against damage and loss.
